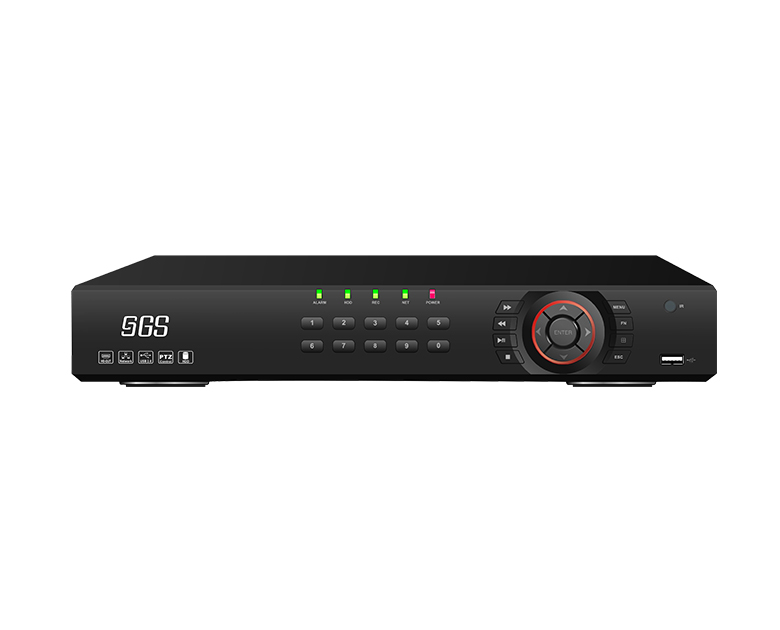

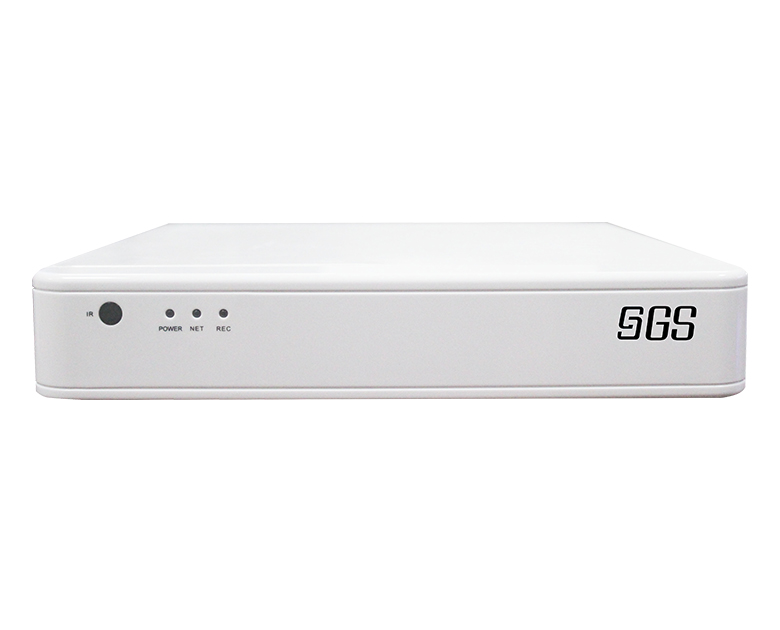

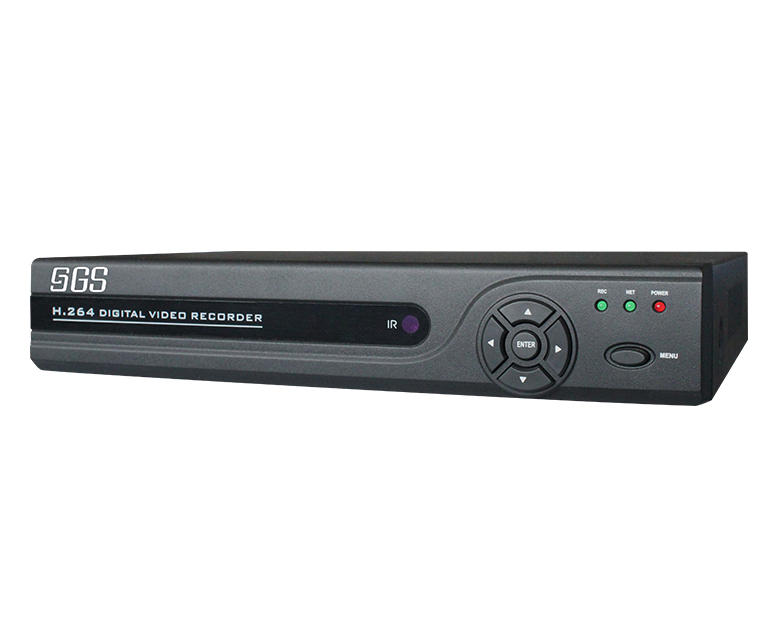

H.264 1080N Smart 5 in 1 XVR
  • H.264 1080N Smart 5 in 1 XVR

H.264 1080N Smart 5 in 1 XVR

61XXCT Series
Model GS-D6104CT-E*  GS-D6108CT-E* GS-D6116CT-F8
CPU/AD HI3520D(V200)+2816 HI3520D(V300)+2816 HI3521A+2816
Operation System Embedded Linux
Video&Audio input Video Input 4CH 8CH 16CH
CVBS、TVI、AHD、CVI Signal Adaptive Compaible,Access to the Optional IP Cameras
support TVI/AHD Camera reverse control(UTC)
BNC interface(1.0Vp-p,75ohms)
 Network Video 24Mbps 48Mbps 96Mbps
Up to 1080P@30FPS
Audio Input 1CH,RCA interface (2Vpp,1Kohms)
Bidirectional Talk 1-way voice intercom reuse
Video&Audio output CVBS output 1CH,BNC interface(1.0Vp-p,75ohms)
VGA 1CH,1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution Optional
HDMI Standard 1.4a
1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution Optional
Audio output 1CH,RCA interface (Line out,2Vpp,300ohms) 1CH&4CH(Optional),RCA Interface (Line out,2Vpp,300ohms)
Intelligent Analysis N/A 1CH Face detection or 4CH Perimeter detection
Video&Audio Encoding Real-time Monitor Resolution 1080P(Only Network) ,Half-1080P,720P,WD1,D1
Video Encoding Profile H.264 High Profile@Level4.2
Encoding resolution Main stream:Half-1080P,720P,WD1,D1 optional
Auxiliary Stream:CIF,QCIF optional
Encoding Ability 4CH 720P@25FPS or 4CH Half-1080P@22FPS 8CH 720P@12FPS or 8CH Half-1080P@12FPS 16CH 720P@12FPS or 16CH Half-1080P@12FPS
Video Frame Rate 1~25fps 1~12fps
Encoding Control Qualified rate, variable bit rate is optional
Video Bit Rate 32Kbps~4096Kbps
Stream Type Composite/Video Streaming
Audio Encoding G.711A
Audio Bit Rate 64Kbps
Dual stream Support,Up to CIF@6FPS
Video&Audio Decoding Video Decoding Porfile H.264(Up to High Profile@Level4.2)
Synchronous Playback Up to 4CH Up to 4CH Up to 8CH
Decoding Ability 1CH 720P@25FPS or 1CH Half-1080P@22FPS 4CH 720P@12FPS or 4CH Half-1080P@12FPS 8CH 720P@12FPS or 8CH Half-1080P@12FPS
Other Function Bidirectional Talk two-way voice intercom function
Motion Detection Zones: 396(22×18)Multiple detection zones,Variable Sensitivity levels
Regional Block Each Channel support 4 Regional block pieces
Picture Capture Support JPEG Capture
HDD Interface SATA  1 SATA interface 1 SATA interface 2 SATA interfaces
Max Capacity Unlimited
External Interface Network Interface 1 RJ45;10M/100M Adaptive Ethernet Interface 1 RJ45;10M/100M Adaptive Ethernet Interface 1 RJ45;10M/100M/1000M Adaptive Ethernet Interface
USB Interface 2USB*2.0 Interfaces 3USB*2.0 Interfaces
RS-485 N/A N/A Support
Structure Dimensions 250*235*45mm 250*235*45mm 335*275*50mm
Installation Desktop Installation
Electrical Properties Power  DC +12V 2A DC +12V 4A
Working Temperature  0℃--+55℃
Working Humidity 10%--90%
Consumption 6W(Without HDD) 7W(Without HDD) 9W(Without HDD)
