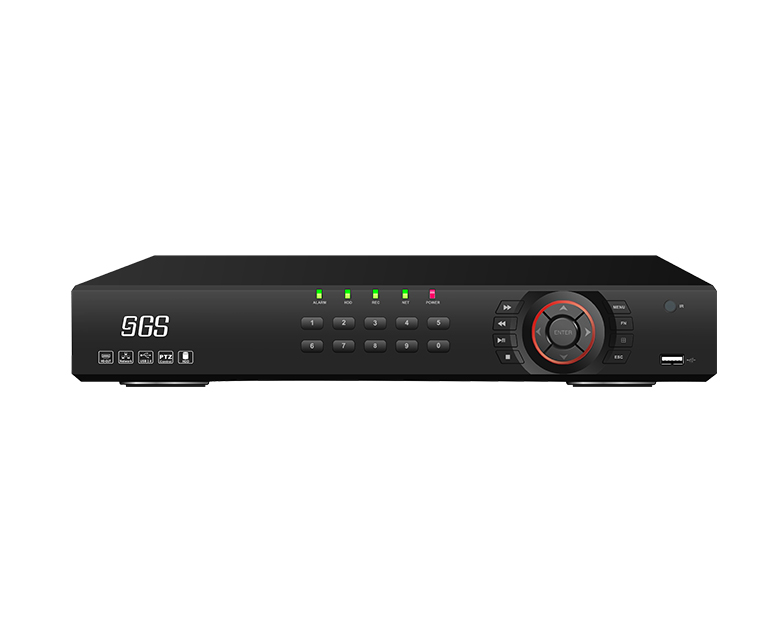

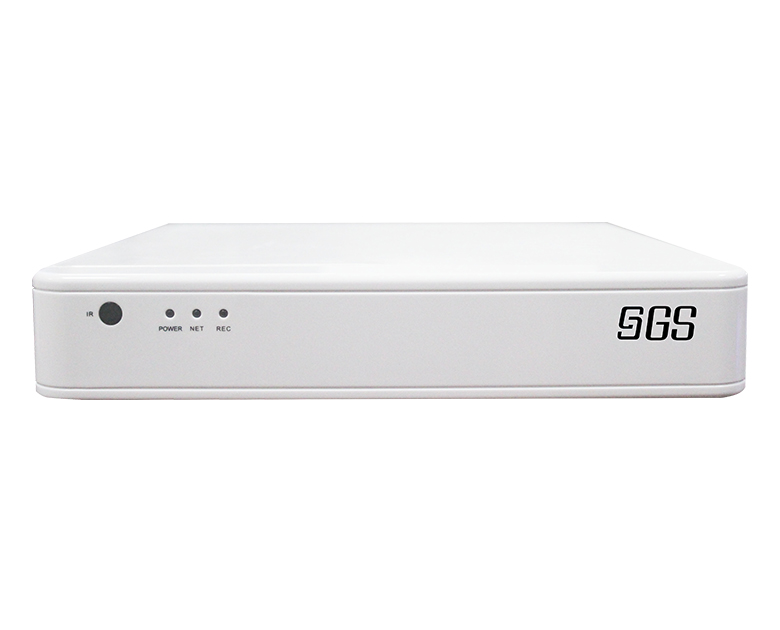

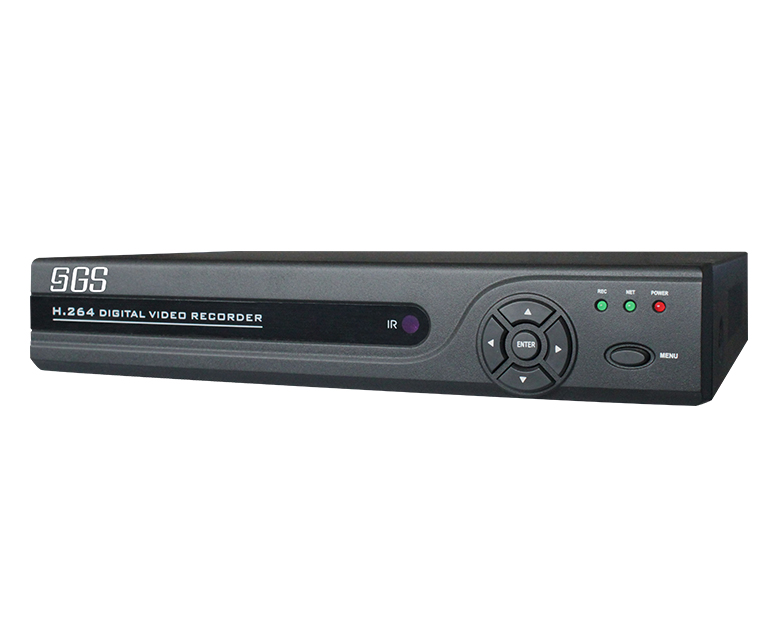

H.264 1080P Smart 5 in 1 XVR
  • H.264 1080P Smart 5 in 1 XVR

H.264 1080P Smart 5 in 1 XVR

61XXGT Series
Model GS-D6104GT-E* GS-D6108GT-E* GS-D6116GT-F8
CPU/AD HI3520D(V300)+2826 HI3521A+2826*2 HI3531A+2826*4
Operation System Embedded Linux
Video&Audio Input Video Input 4CH 8CH 16CH
CVBS、TVI、AHD、CVI Signal adaptive Campatible,Access to the Optional IP Cameras
BNC Interface(1.0Vp-p,75ohms)
TVI4MP/AHD4MP/TVI3MP/AHD3MP/CVI3MP/TVI1080P/TVI720P/AHD1080P/AHD720P/CVI1080P/CVI720P/960H/D1
Support TVI/AHD Camera Reverse Control(UTC)
Network Video 32Mbps 64Mbps 128Mbps
Up to 2048*1536@30FPS
Audio Input 1CH,RCA interface (2Vpp,1Kohms)
Bidirectional Talk 1way voice intercom reuse
Video&Audio Output CVBS Output 1CH,BNC Interface(1.0Vp-p,75ohms)
VGA 1CH,1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution Optional
HDMI Standard 1.3a Standard 1.4a
1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution Optional 3840*2160,1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution Optional
Audio Output 1CH,RCA Interface (Line out,2Vpp,300ohms) 1CH&4CH(Optional),RCA Interface (Line out,2Vpp,300ohms)
Intelligent Analysis 1CH Face detection or 4CH Perimeter detection 2CH Face detection or 8CH Perimeter detection Optional
Video&Audio Encoding Real-time Monitor Resolution half-4MP,2048*1536,1080P,720P,WD1,D1
Video Encoding  H.264 High Profile@Level4.2
Encoding Resolution Main Stream :half-4MP,3MP,1080P,720P,WD1,D1 Optional
Auxiliary Stream:CIF,QCIF Optional
Video frame rate Main Stream:
4MP Lite:4MP Lite/720P/960H/D1@12fps
3MP:3MP/1080P/720P/960H/D1@12fps
1080P:1080P/720P/960H/D1@12fps
720P:720P/960H/D1@25fps(P)/30fps(N)
Auxiliary Stream:
D1:D1@6fps
CIF:CIF@25fps(P)/30fps(N)
Encoding Control Qualified Rate , Variable bit rate Optional
Video Bit Rate 32Kbps~4096Kbps
Stream Type Composite/Video Streaming
Audio Encoding  G.711A
Audio Bit Rate 64Kbps
Dual stream Support,Up to CIF@30FPS
Video&Audio Decoding Video Decoding  H.264 High Profile@Level4.2
Synchronous Playback Up to 4CH Up to 8CH Up to 16CH
Max Decoding Ability 4CH 720P@25FPS or 4CH 1080P@12FPS or 2CH 3MP@12FPS 8CH 720P@25FPS or 4CH 1080P@12FPS or 2CH 3MP@12FPS 16CH 720P@25FPS or 8CH 1080P@12FPSor 4CH 3MP@12FPS
Other Function Bidirectional Talk Two-Way Voice Intercom Function
Motion Detection Zones :396 (22×18)Detection Zones ;Variable Sensitivity Levels
Regional Block Each Channel Support 4 Regional Block Pieces
Picture Capture Support JPEG Capture
HDD SATA 1 SATA interface 1SATA interface 2 SATA interfaces
Max Capacity Unlimited
External Interface Network Interface 1RJ45;10M/100M adaptive Ethernet interface 1RJ45;10M/100M adaptive Ethernet interface 1RJ45;10M/100M/1000M adaptive Ethernet interface
USB 2USB*2.0 Interfaces 3USB*2.0 Interfaces
RS-485 N/A N/A Support
Structure Dimensions 250*235*45mm 250*235*45mm 335*275*50mm
Installation Desktop Installation
Electrical Properties Power  DC +12V 2A DC +12V 4A
Working Temperature  0℃--+55℃
Working Humidity 10%--90%
Consumption 6W(Without HDD) 8W(Without HDD) 16W(Without)
