NVR91XX Series
  • NVR91XX Series

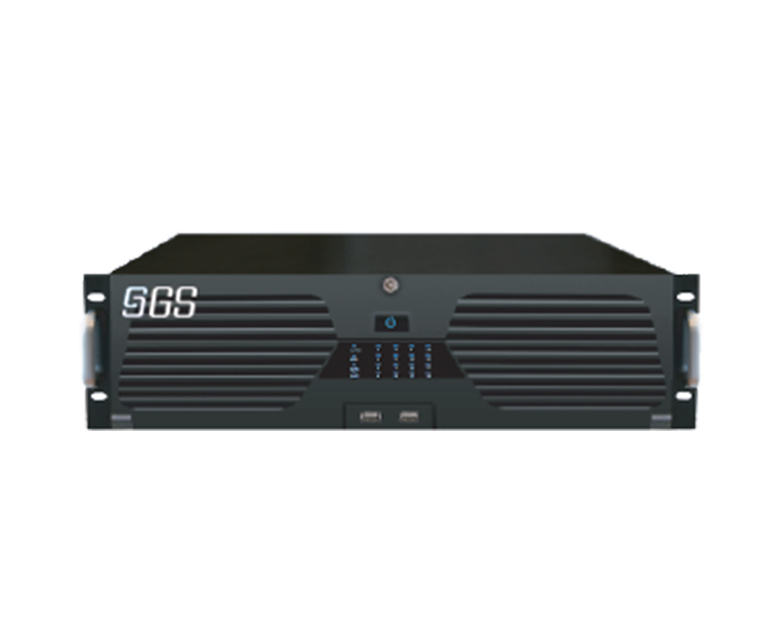

NVR91XX Series

NVR91XX Series
Model GS-NVR9116-AV GS-NVR9132-AV GS-NVR9164-AV
Operation System Embedded Linux
Video&Audio Input Bidirectional Talk 1CHRCA interface(Line in,2Vpp,1Kohms)
Incoming bandwidth 128Mbps 200Mbps 256Mbps
IPC Input 16CH 32CH 64CH
Video&Audio output VGA 1CH,1920×1080,1280×1024,1280×720,1024×768 resolution optional
HDMI 2
3840×21601920×1080,1280×1024,1280×720,1024×768 resolution optional
Audio Output 1CH,RCA interface(Line out,2Vpp,300ohms)
Video&Audio encoding Audio Compression G.711A
Audio Bit Rate 64Kbps
Video&Audio decoding IP channel Resolution Main stream:Up to3264x2448
Auxiliary stream:D1
Video decoding  H.265Main Profile@L5.0 High-tie/
H.264(Up to High Profile@Level5.0
Audio decoding  G.711AG.726
Synchronous Playback Up to 16CH Up to 32CH Up to 32CH
Max Decoding Ability 16CH1080P@30FPS 16CH1080P@30FPS 16CH1080P@30FPS
Intelligent Analysis 1CH Face detection or 2CH Perimeter detection optional N/A
Up to 1080P
Other Function Bidirectional Talk Two-way voice intercom function
Motion Detection Zones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)with IPC support
Picture Capture Support JPEG Capture
HDD Interface SATA 16 HDD
ESATA 1 ESATA
Max Capacity Unlimited
External Interface Network Interface 2 RJ45 10M/100M self-adaptive Ethernet interfaces
USB Interface 3 USB2.0 interface
Alarm Input 16CH
Switch value
Alarm Output 4CH
Relay NO, NC
RS-232 1CH
RS-485 1CH,half-duplex
Structure Size 3U437x483x143mm
Package 600x560x260mm
Weight 15Kgwithout HDD
Installation  rack mountingDesktop Installation
General Power Supply 110V~220V±10%  47Hz63Hz
Working Temperature 0--55
Working Humidity 10--90
Consumption 30Wwithout HDD
